Obi-Wan Episode 1 Lightsaber Replica: Version 1

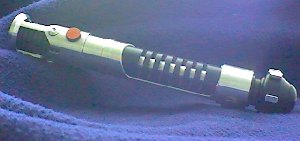

Our first attempt at this replica.


A close-up of the emitter end.


The hand grip.  The metal part seen on the inside is highly polished stainless steel.  Expensive, but very nice.

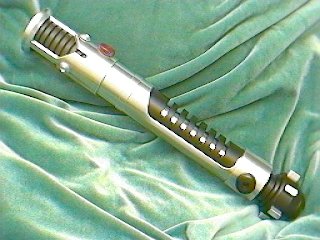

Yet another picture of the first prototype.  The buttons are not in the right places and the end knob needs to be fixed.

Obi-Wan Episode 1 Lightsaber Version 2:

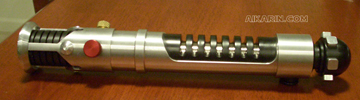

The metal pieces in the pommel are square and the recharge port has been moved.

<-- click on pic for enlarged view

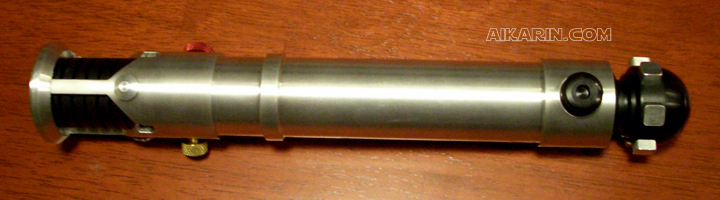

The belt clip / recharge port is on the back of the saber.  It snaps nicely onto a belt clip.

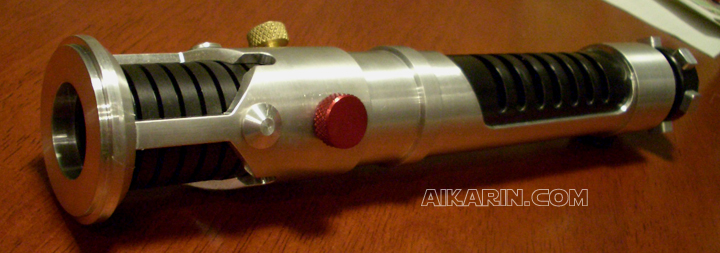

The emitter end has two buttons, the red button and the brass one.   The notch lines up with the center line of the saber.

<-- click on pic for enlarged view


Close-ups of the two buttons used on this saber.  Notice the funky knurled diamond cut on the sides!  The red button is not painted - it is actually anodized red.
Brass Knurled Knob - this knob is 0.5" in diameter and 0.25" thick.  The stem length is 0.25".
Red Anodized Knurled Knob -this knob is 0.6" in diameter and 0.25" thick.   The stem length is 0.25".

Ah, here it is.  The completed lightsaber.   People who have seen it say it REALLY looks like a weapon, not a cheesy toy :)

<-- click on pic for enlarged view

Another pic of the saber.  Nice view of the super shiny stainless steel insert.

<-- click on pic for enlarged view
